Hnyav txiav Cnc Machining Center V1165
Tus naj npawb ntawm cov tswj servo axes axis 3 axis
Lub rooj ua haujlwm loj mm 1200 × 650
Max rooj load kg 800
T-qhov ntawm lub rooj ua haujlwm (ntau qhov loj × qhov sib nrug) hli 5-18 × 120
Sab laug thiab sab xis stroke (X) mm 1150
Rov qab thiab rov qab stroke (Y) mm 650
Nce thiab down stroke (Z) mm 600
Spindle taper qhov (kev qhia tshwj xeeb / kev teeb tsa loj) mm BT40
Spindle ceev rpm 10000rpm
Spindle tsav hom Siv hom 7.5 / 11KW
Hnyav txiav cnc machining chaw V1165 USE Thawj tshuab accessories, muab xaus rau fakes
Private custom configuration yog nyob ntawm koj
Zoo siab txais tos rau lub Hoobkas los coj thiab coj kev qhia
Kev tu lub neej
Nta:
Plaub lub ntsiab accessories koj nyiam tshaj plaws
Spindle unit
Mechanical tool magazine
CNC system
Casting tshuab
Peb ua tib zoo xaiv
Kev kub ceev
Siab Precision
kev ua haujlwm siab
Taiwan spindle
Mechanical tool magazine
CNC system
Taiwan spindle
Siab torque thiab siab ceev 1000-120000rpm
Ntuj laus
Ntuj kev laus kho yog siv los xyuas kom meej qhov tseeb ntawm lub tshuab cuab yeej
Mechanical tool magazine tool arm type tool magazine
Tsis siv neeg lub cuab yeej hloov qhov system 24/32 cov cuab yeej ua haujlwm
Precision ntsia hlau
C3 qib txhuas ntsia hlau thiab P qib kab tsheb ciav hlau lav tshuab cuab yeej qhov chaw raug
Numerical tswj system: tib neeg kev sib cuam tshuam tsim, siab compatibility, zoo tom qab-muag
Hom khoom siv hluav taws xob: tsim nyog hluav taws xob disc khiav disc, muaj kev nyab xeeb siab, ua haujlwm ntev
Cov yam ntxwv
Hnyav txiav cnc machining chaw V1165 Zoo ua rau koj tsis ntshai
High rigidity thiab siab precision, txhua lub tshuab ua ntau yam kev soj ntsuam ua ntej tawm hauv lub hoobkas!
CNC casting lub cev
Lub hauv paus tseem ceeb xws li lub hauv paus, zawv zawg rooj, worktable, kem, spindle thiab lwm yam yog ua los ntawm high-rigidity cam khwb cia hlau qauv.
Dawb los xaiv thiab phim cov khoom lag luam thawj-chav kawm ntawv magazine 'precise, npaum, ruaj khov thiab ruaj khov

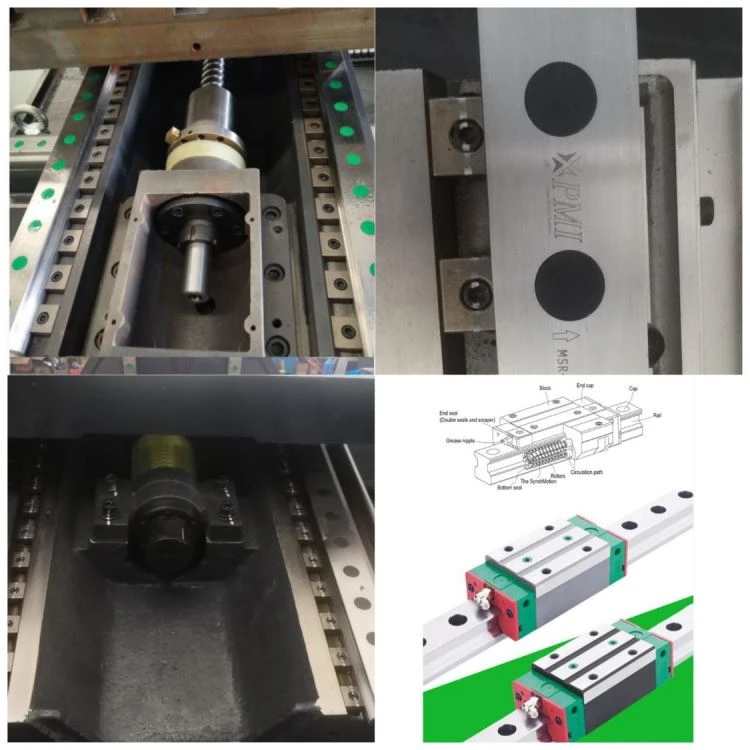

Taiwan Roller linear phau ntawv qhia ntsia hlau lav kev ua haujlwm raug, siab ceev pub, thiab ua haujlwm siab zog
Tshuab cuab yeej tshuaj xyuas ua haujlwm
Tshawb nrhiav lub voj voog
Laser interferometer
Tshuab cuab tam sim txiav
Ntsia hlau ntes
Hais txog kev pabcuam
Lub tuam txhab muaj kev pabcuam ua tiav, muaj kev paub txog kev muag khoom tom qab, muab kev cob qhia kev cob qhia, cov neeg siv khoom siv tshuab ntsib teeb meem hauv kev siv, 24 teev los muab kev pabcuam rau koj.
Vim li cas thiaj muaj qhov sib txawv loj ntawm tus nqi Heavy Cutting Cnc Machining Center
Qhov laj thawj tseem ceeb nyob hauv kev xaiv ntawm qhov sib txawv ntawm cov cuab yeej siv tshuab. Ntau qhov kev lag luam, cov ntaub ntawv sib txawv, cov npe sib txawv, tab sis lawv cov nqi sib txawv heev, nrog rau cov khoom siv, cov khoom siv thiab lwm yam. Piv txwv li, cov tub ntxhais CNC system ntawm CNC tshuab cuab yeej, kuj tseem muaj qee qhov kev siv CNC tshuab hauv Suav teb, thiab qee qhov tuaj ntawm Taiwan, nrog rau tus kheej tsim thiab muag hauv Suav teb loj. Muaj ntau ntau tus nqi kauj ruam rau qhov no. Qhov laj thawj tseem ceeb yog qib tam sim no ntawm kev siv tshuab thiab lwm yam. Qee lub npe muaj qhov sib txawv. Ntxiv rau qhov sib txawv no xws li servo systems, cuab yeej cov ntawv xov xwm, thiab lwm yam, qhov sib txawv muaj qhov sib txawv. Cov neeg sib txawv muaj kev xaiv sib txawv ntawm cov khoom no. Kuj tseem muaj qhov sib txawv ntawm qib ntawm lub zog ntawm cov cuab yeej tsim khoom, uas tsim cov khoom siv hluav taws xob sib txawv tam sim no hauv tsev. Yog vim li cas rau qhov sib txawv.
Cov kev lag luam twg tsim nyog rau Hnyav Txiav Cnc Machining Center V1165?
(1) Lub thawv hom feem ntau xa mus rau qhov chaw uas muaj ntau tshaj li ib lub qhov system, kab noj hniav hauv, thiab ib qho kev qhia ntawm qhov ntev, qhov dav, thiab qhov siab. Cov khoom zoo li no yog siv rau hauv cov cuab yeej siv tshuab, tsheb, aircraft tsim thiab lwm yam haujlwm. Feem ntau xaiv kab rov tav tho txawv thiab milling hom me machining chaw. Thaum muaj ob peb qhov chaw ua haujlwm thiab qhov ncua sij hawm tsis loj, koj tuaj yeem xaiv qhov chaw ntsug machining chaw los ntawm ib kawg.
(2) Lub cluttered nto occupies ib tug tshwj xeeb tseem ceeb txoj hauj lwm nyob rau hauv lub machinery manufacturing kev lag luam, tshwj xeeb tshaj yog cov aerospace kev lag luam. Xws li: ntau yam impellers, cua qhia lub log, spherical nto, ntau yam nkhaus nto tsim pwm, kiv cua thiab cov kiv cua ntawm cov tsheb hauv qab dej, thiab qee qhov chaw dawb nkhaus. Cov khoom zoo li no tuaj yeem ua tiav los ntawm cov chaw ua haujlwm me me. Cov hauv qab no yog ntau tshaj:
① Cams thiab cam npaj yog cov ntsiab lus tseem ceeb ntawm cov ntaub ntawv kho tshuab thiab kev sib kis, thiab tau siv dav hauv ntau lub tshuab ua haujlwm. Cov khoom no muaj ntau yam nkhaus disc cams, cylindrical cams, conical cams, chim cams, thiab kawg ntsej muag. Cam thiab lwm yam Machining xws li tuaj yeem xaiv peb-axis, plaub-axis txuas lossis tsib-axis txuas machining chaw raws li qib ntawm cam teeb meem.
②Qhov xws li cov impellers feem ntau pom muaj nyob rau hauv compressors ntawm aero engines, expanders ntawm oxygen ntau lawm cov khoom, ib leeg-ntsia hlau cua compressors, thiab lwm yam. Rau xws li ib tug profile, ib tug machining chaw uas muaj ntau tshaj plaub-axis linkage yuav siv tau los ua kom tiav nws.
③Moulds xws li txhaj tshuaj pwm, roj hmab pwm, lub tshuab nqus tsev pwm pwm, tub yees foaming pwm, siab casting pwm, nplua casting pwm, thiab lwm yam. txav pwm thiab pwm zoo li qub yog qhov pib ua kom tiav tag nrho cov ntsiab lus machining nyob rau hauv ib qho khoom siv, uas tuaj yeem txo cov kev ua yuam kev hauv cov nplai thiab txo cov nqi kho. Nyob rau tib lub sij hawm, cov pwm muaj zog imitability thiab zoo interchangeability. Tus nqi ntawm kev ua hauj lwm los ntawm machining mus rau lub fitter yog me me, thiab nyob qhov twg cov cuab yeej siv tau, lub machining yuav tsum tau ua kom tiav ntau li ntau tau, thiaj li hais tias cov hauj lwm ntawm cov pwm fitter yog tsuas yog polishing.
④ Lub ntsej muag kheej kheej tuaj yeem milled los ntawm machining chaw. Peb-axis milling tsuas tuaj yeem siv pob-kawg milling cutters rau kev ua tam sim, thiab lub zog qis. Rau tsib-axis milling, kawg mills tuaj yeem siv los ua lub hnab ntawv nto kom cuam tshuam rau ntawm tus kheej kheej. Thaum chaotic nto yog ua tiav los ntawm machining chaw, lub programming workload kuj loj, thiab feem ntau ntawm lawv yuav tsum tau active programming technology.
Cim npe nrov: hnyav txiav cnc machining chaw v1165, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, nqe, kev muag khoom, ua nyob rau hauv Suav teb
