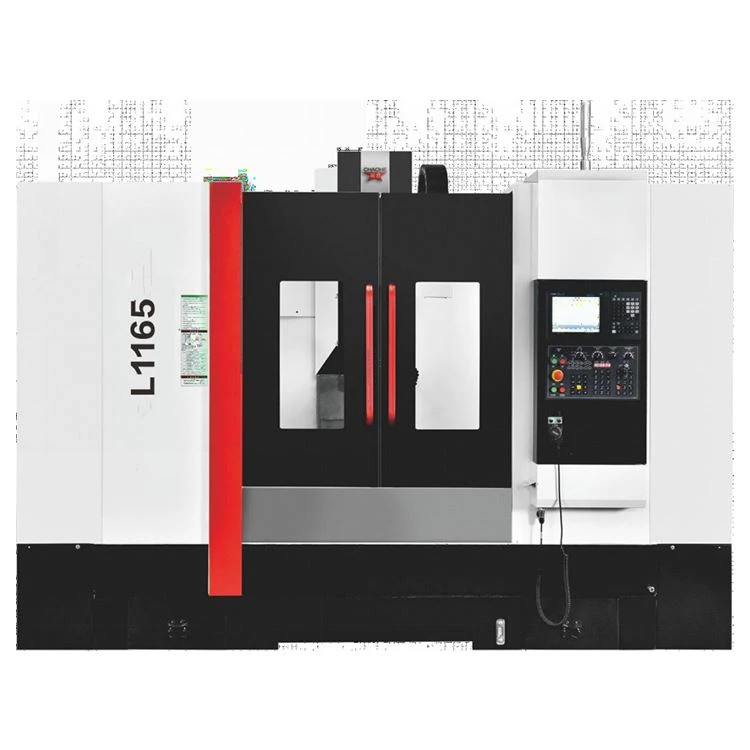

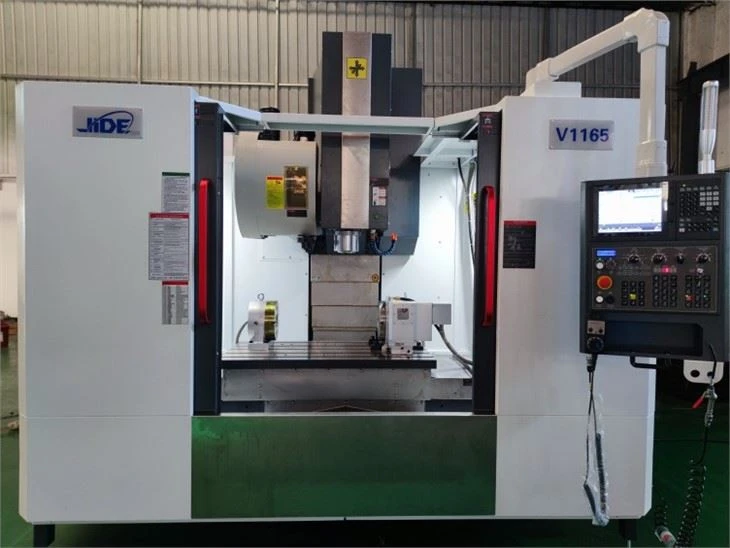

CNC Precision Milling V1165
Tus naj npawb ntawm cov tswj servo axes axis 3 AXIS
Lub rooj ua haujlwm loj mm 1200 × 650
Lub rooj ua haujlwm hnyav kg 800
T-qhov ntawm lub rooj ua haujlwm (ntau qhov loj × qhov sib nrug) hli 5-18 × 120
Sab laug thiab sab xis stroke (X) mm 1100
Rov qab thiab rov qab stroke (Y) mm 650
Nce thiab down stroke (Z) mm 600
Spindle taper qhov (kev qhia tshwj xeeb / kev teeb tsa loj) mm BT40
Spindle ceev rpm 10000rpm
Spindle tsav hom Belt
CNC precision milling V1165 nruab nrog Taiwan SANJET spindle chav tsev
High-precision bearings thiab txhuas screws
Taiwan manipulator hom cuab yeej magazine
Taiwan HIWIN linear phau ntawv qhia

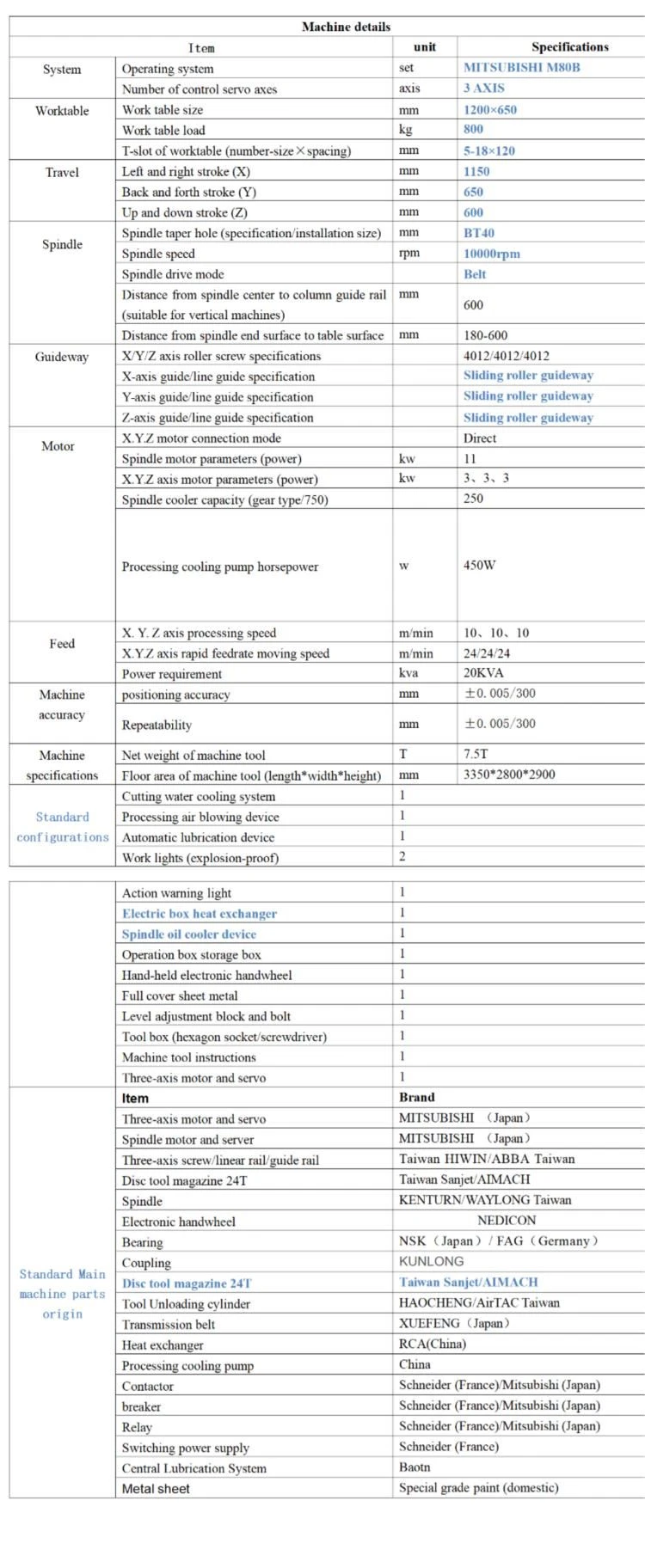

Parameter
Cov kev taw qhia kev tsheb ciav hlau muaj qhov dav dav thiab peb txoj kab qhia kev tsheb ciav hlau ntawm lub hauv paus kom ntseeg tau tias lub zog ntawm lub tshuab cuab yeej!

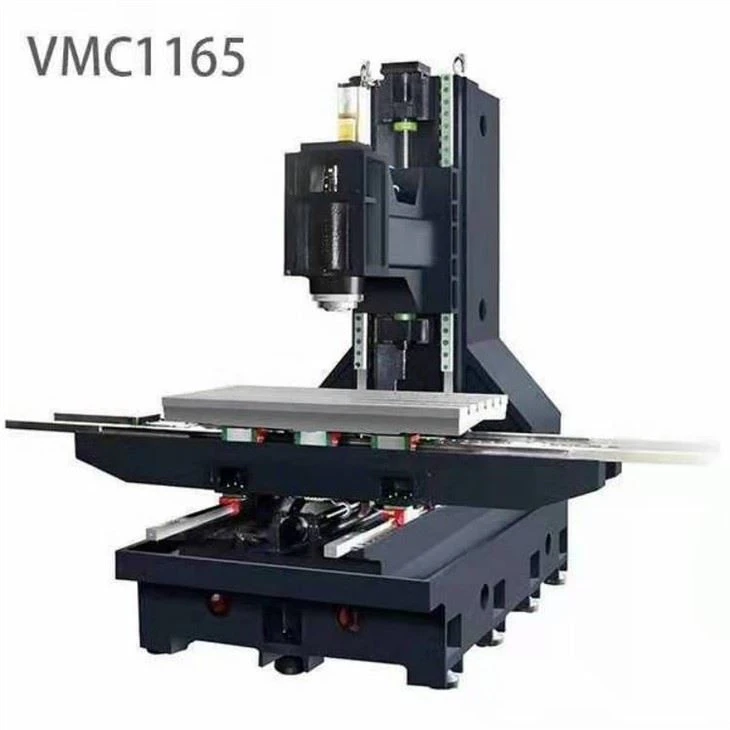

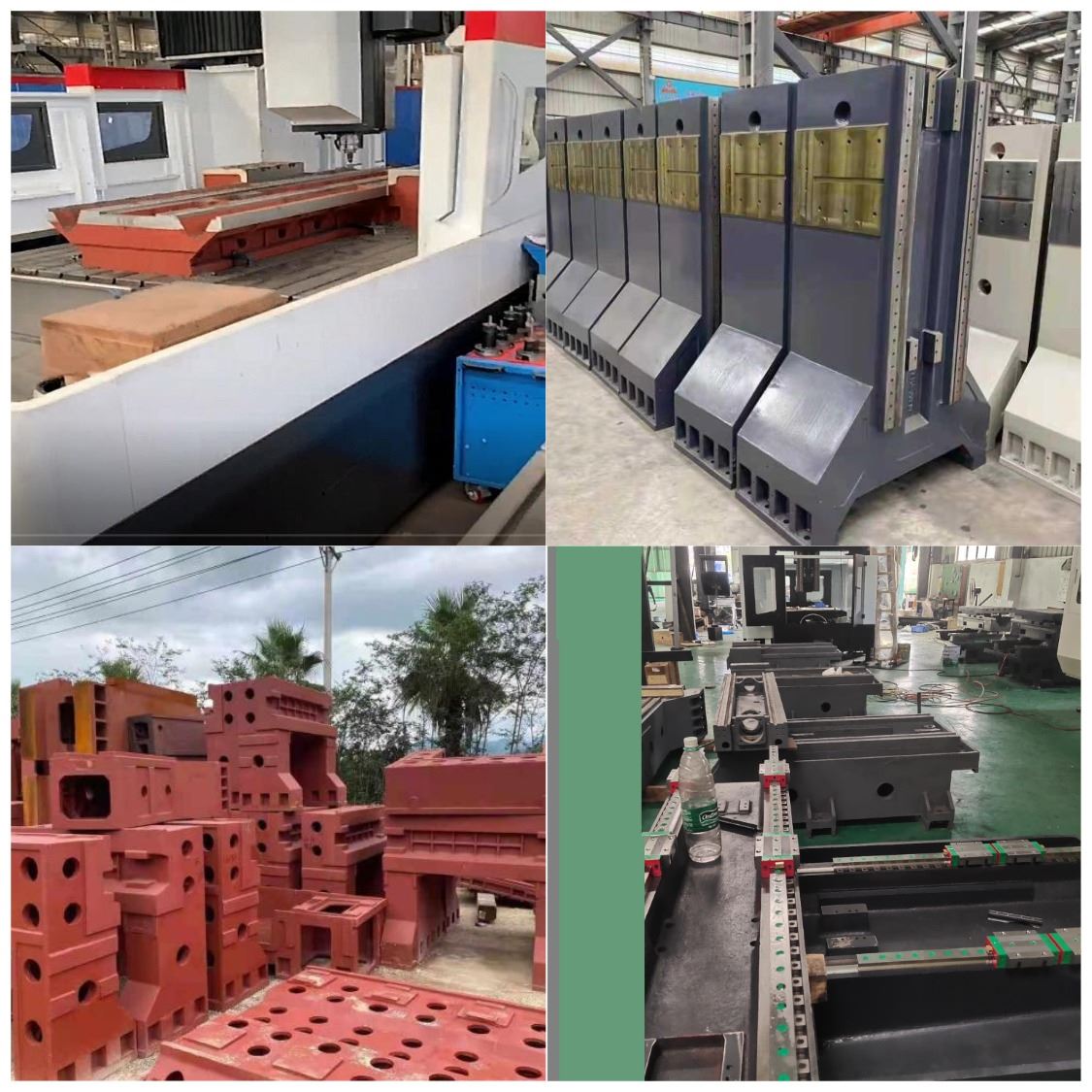

CNC precision milling V1165 puag thiab kem muaj qhov tshwj xeeb loj-nruab nrab thiab siab-rigidity qauv tsim, khoom zoo li lub pob zeb, ruaj khov li roob, tsim kab ke siab, tseg qhov chaw rau 4th thiab 5th axis
Tsawg-inertia spindle tsim, siab ruaj khov, ceev thiab raug lub cuab tam hloov nyob rau hauv lub clamping caj npab cuab yeej magazine, lub sij hawm hloov lub cuab tam yog 1.2 vib nas this, heev haum rau drilling me me txoj kab uas hla qhov tshwj tsis yog rau qhov chaw ua.
Txais yuav rear nti tshem tawm tsim, nti tshem tawm lub kaum sab xis thiab super loj ntws nti flushing system
Nws yog ib qho yooj yim rau kev khiav lag luam nrog high-function AC spindle servo lub cev muaj zog thiab humanized dialogue interface.
Peb-axis high-speed hloov chaw ntawm 36m / min, ceev; high-speed servo lub cuab tam hloov, ceev thiab ruaj khov, zoo heev txo lub sij hawm ua
1. Numerical control system: FANUC/SIEMENS
2. Spindle ceev: 10000rpm
3. Spindle rotation hom: siv
4. Spindle taper: BT40/150
5. 1100x650x600m
6. Disc manipulator nrog 24 cov ntawv xov xwm
Yeem:
GSK system, SYNTEC thiab lwm yam
CNC indexing taub hau
32 disc tool magazine
Kauv Chip Conveyor Chain Chip Conveyor
Dej tawm ntawm qhov chaw spindle
Spindle roj txias
