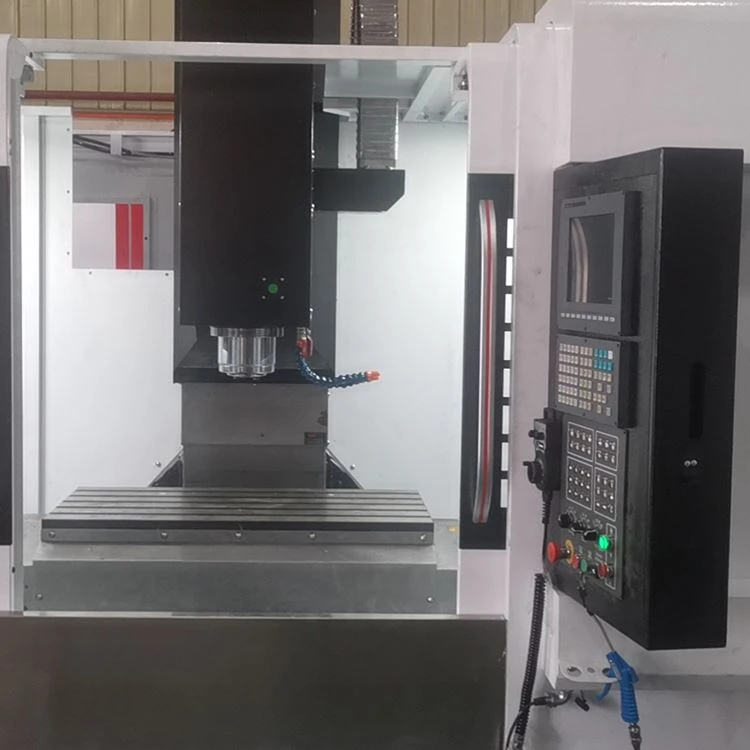

CNC ntsug Milling Center X1100
Tus naj npawb ntawm cov tswj servo axes axis 3 axis
Lub rooj ua haujlwm loj mm 1200 × 650
Max rooj load g 800
T-qhov ntawm lub rooj ua haujlwm (ntau qhov loj × qhov sib nrug) hli 5- 18 × 120
Sab laug thiab sab xis stroke (X) mm 1100
Rov qab thiab rov qab stroke (Y) mm 650
Nce thiab down stroke (Z) mm 600
Spindle taper qhov (kev qhia tshwj xeeb / kev teeb tsa loj) mm BT40
Spindle ceev rpm 10000rpm
Spindle drive hom Siv hom
CNC ntsug milling chaw X1100 nruab nrog 24 caj npab hom cuab yeej magazine
peb axis roller hom linear guideway
Taiwan spindle
Txais Taiwan txoj siv hom lossis ncaj nraim txuas nrog spindle, spindle tau sib npaug thiab kuaj kom muaj kev kub ceev thiab ruaj khov
Taiwan manipulator cuab yeej magazine
24 disc cuab yeej cov ntawv xov xwm, cov cuab yeej hloov rov ua dua lub sij hawm hauv 3 vib nas this, nce kev ua haujlwm ntau lawm
CNC system
CNC cov lej tswj qhov system, servo tsav, ua tiav tiav
HIWIN/THK pob ntsia hlau
Class C3 pob ntsia hlau, ua haujlwm du thiab rov qab me me
Tsis muaj
CNC ntsug milling chaw X1100 txheem configuration:
▲ CNC system FANUC / MITSUBISHI /
▲ Taiwan 24T tshuab cuab yeej magazine
▲ Casting zoo resin xuab zeb
▲ Main spindle Taiwan spindle BT40-10000 rpm
▲ ntsia hlau pas nrig Taiwan HIWIN
▲ Riam Lub tog raj kheej Airtac Taiwan
▲ Hlau ntsuas Taiwan HIWIN
Yeem configuration:
▲ GSK/SYNTEC
▲ CNC indexing taub hau
▲ CNC tshuab dhos
▲ Tsis siv neeg nti conveyor
▲ Plaub axis, lub thib tsib axis
