Me Cnc Milling Tshuab Rau Hlau
Y axis mus ncig mm 450
Z-axis mus ncig mm 450
Spindle qhov ntswg mus ua hauj lwm nto mm 135-585
Spindle center rau kab ntawv qhia mm 488
● workbench
Lub rooj loj (L x W) mm 700 * 420
T-qhov (ntau-loj * qhov sib nrug) hli 3-18*100
Qhov siab tshaj plaws load kg 450
Me me cnc milling tshuab rau hlau parameter
Specifications | Chav tsev | V-650 | ||
● | Mus ncig | |||
X-axis taug kev | mm | 600 | ||
Y axis taug kev | mm | 450 | ||
Z-axis taug kev | mm | 450 | ||
Spindle qhov ntswg rau qhov chaw ua haujlwm | mm | 135-585 | ||
Spindle center rau kab ntawv qhia | mm | 488 | ||
● | chaw ua haujlwm | |||
Lub rooj loj (L x W) mm | 700*420 | |||
T-qhov (ntau-loj * qhov sib nrug) mm | 3-18*100 | |||
Qhov hnyav hnyav kg | 450 | |||
● | Spindle | |||
Spindle ceev rpm | 12000 | |||
Spindle lub cev muaj zog kw | 7.5 | |||
Spindle taper qhov ( qauv / kev teeb tsa loj) | BT40 | |||
● | pub | |||
G00 Kev nrawm nrawm (X axis) m/min | 48 | |||
G00 Kev nrawm nrawm (Y axis) m/min | 48 | |||
G00 Kev nrawm nrawm (Z axis) m/min | 48 | |||
G01 Txiav pub m/min | 10/10/10 | |||
● | tshuab precision | |||
Positioning raug mm | 0.005/300 | |||
Rov ua qhov tseeb qhov tseeb mm | 0.003/300 | |||
● | lwm yam | |||
Footprint (ntev) mm (kwv yees) | 2300 | |||
(dav) mm (kwv yees) | 2300 | |||
Tshuab qhov siab (qhov siab) mm (kwv yees) | 2600 | |||
Tshuab hnyav Kg | 4000 | |||
Main qhov chaw:
Yam khoom | Hom | Keeb kwm |
tus tswj | MITSUBISHI | Nyiv |
Spindle lub cev muaj zog | MITSUBISHI | Nyiv |
X, Y, Z axis motors | MITSUBISHI | Nyiv |
tes log | MITSUBISHI | Nyiv |
Tool magazine | SANJET/AIMACH | TAIWAN |
Spindle | LEEJ TWG/Royal/KENTURN | TAIWAN |
Spindle roj txias | RUCOL | Tuam Tshoj |
Cov menyuam pob ntsia hlau (X, Y, Z) | HIWIN Z axisTxuas ntxiv32*16 ob nut XY 28 * 16 tib lub txiv ntoo | TAIWAN |
Kab qhia (Roller) ( X/Y/Z) | HIWIN/PMI XY 30 * 2 Z 35*2 | TAIWAN |
bearing | NSK/FAG | Nyiv |
Kev sib txuas | Nyiv | hauv tsev |
Roj injector | Baotn | kev sib koom tes |
Thaum tshav kub kub Exchanger/Spindle Oil Cooler | RUCOL | hauv tsev |
Txiav dej lub cev muaj zog | SINAER | hauv tsev |
Lub electromagnetic valve | SMC | Nyiv |
cua lim | SMC | Nyiv |
AC contactor | Schneider | Fabkis |
Overload tiv thaiv | Schneider | Fabkis |
relay | Schneider | Fabkis |
Tshuab cuab yeej ua hauj lwm lub teeb (explosion proof light) | HEYI | kev sib koom tes |
Lwm yam khoom siv hluav taws xob loj | BEIZHE | kev sib koom tes |
Shield (X, Y, Z) | HONGWANG | hauv tsev |
daim hlau | Cov xim tshwj xeeb hauv tsev |
Tshuab cov ntsiab lus
High rigidity casting qauv
HT 300 casting
Txhim kho tsim, muaj zog rigidity
me me cnc milling tshuab rau hlau siv Honeycomb qauv, ob-tempered, kev co laus tshiab herringbone kem qauv, ob-txheej workbench qauv
Tshuab cuab yeej paub meej kev ruaj ntseg zoo
Optional configuration ntawm CNC turntable los nthuav cov kev ua ntawm plaub axis rau kev ua daim ntaub ntawv ntawm tej qhov chaw
Spindle los ntawm Taiwan, tag nrho cov txheej spindle yog sib sau ua ke nyob rau hauv qhov kub thiab txias kom ntseeg tau tias qhov kev sib hloov raug ntawm spindle
Disc magazine
Nruab nyob rau sab ntawm kem, lub manipulator tool changer ua tiav cov cuab yeej hloov pauv thiab xa khoom, ua kom cov txheej txheem hloov pauv sai thiab raug.
Ntsia hlau rail
Me me dynamic thiab zoo li qub kev sib txhuam, me me high-speed vibration, siab positioning raug
CNC system
Txhawb fanuc oi mf CNC system xaiv, GSK CNC Taiwan SYNTEC, Lub teb chaws Yelemees SIEMENS Nyiv MITSUBISHI thiab lwm yam CNC tshuab
Cov khoom siv hluav taws xob
Kev yuav khoom ntawm Schneider thiab lwm yam khoom siv hluav taws xob nrog kev ua haujlwm ruaj khov
kav ntev
Exquisite lub cev ua nrog ingenuity
Stereo puag
Herringbone kem tsim, rov nrum cov txheej txheem qhov chaw ultra-wide kem puag tsim
Phau ntawv scraping
Txhua qhov chaw sib cuag ntawm lub tshuab cuab yeej yog manually scraped thiab grinded, nrog me deformation, siab precision thiab zoo precision tuav

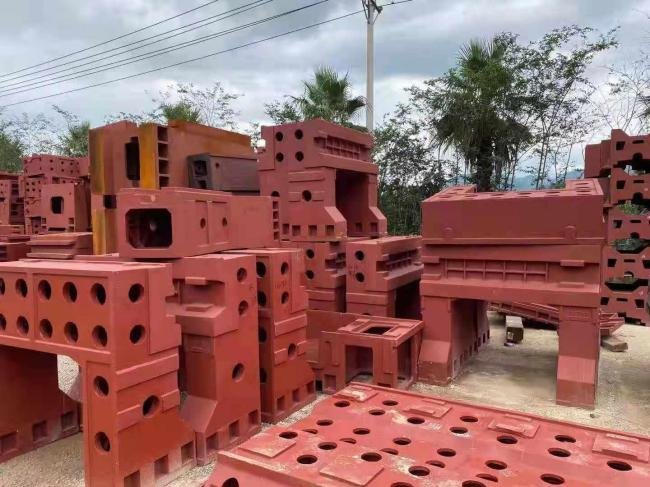

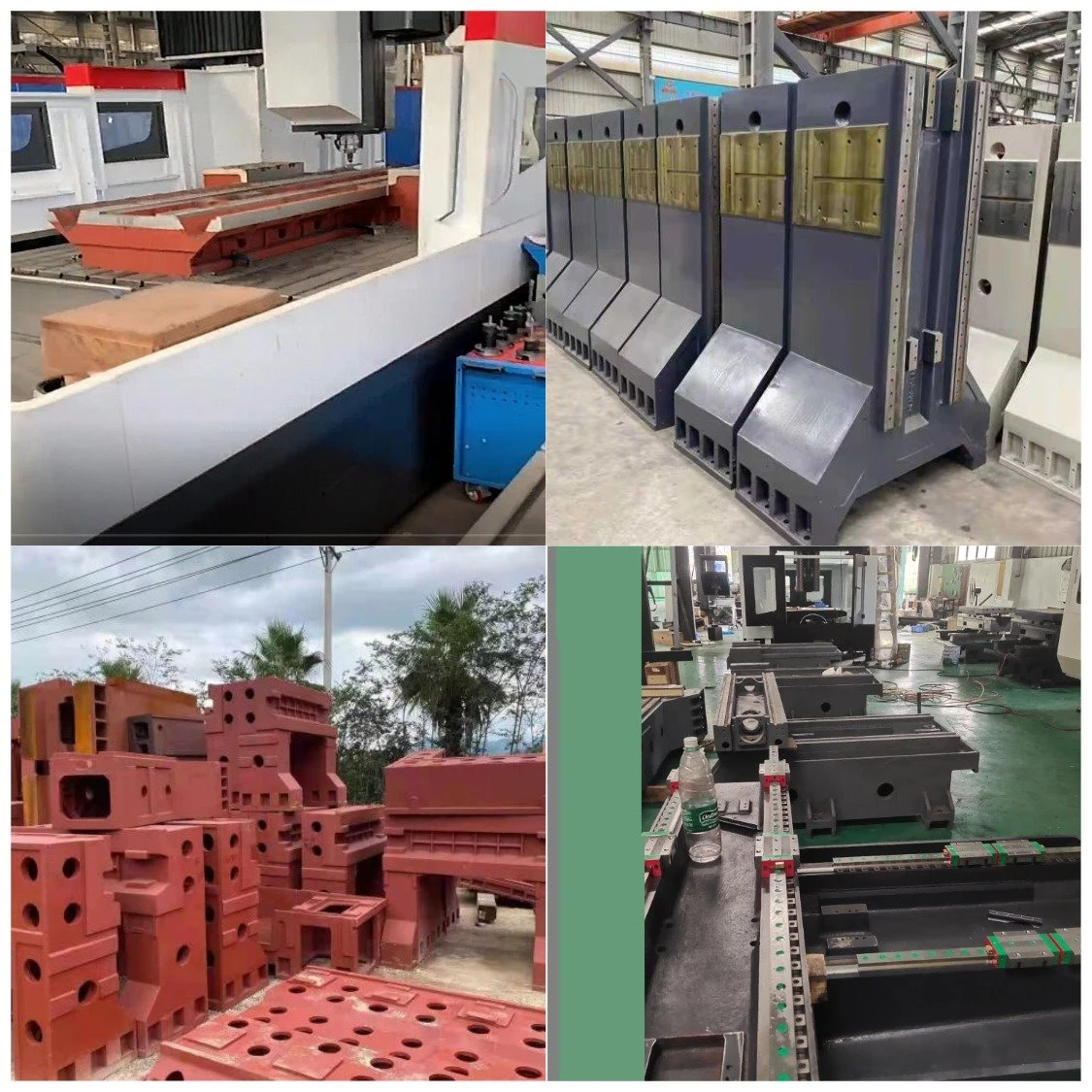

casting
Siv cov qib siab Meehanite cam khwb cia hlau, theem nrab tempering thiab kev laus kev kho mob, txo kev cuam tshuam thiab deformation, thiab txhim kho kev co thiab kev poob siab absorbability.
me me cnc milling tshuab rau hlau zoo soj ntsuam nruj tswj
Ballbar roundness raug saib xyuas
Laser kuaj pom thiab calibration them nyiaj
xz ntsug precision nrhiav kom tau
Kab rail parallelism raug kuaj pom
Spindle mounting nto raug tshuaj xyuas
FAQ
31. Cov ntawv pov thawj rau koj qhov me me cnc ntsug machining chaw yog dab tsi?
Nws nyob ntawm cov khoom, mormally, CE, muaj,
32. Yuav ua li cas muab qhov kev txiav txim?
1. Xa koj cov kev xav tau rau peb cov khoom mdel, quanity, xim, logo thiab pob.
2. Peb hais raws li koj xav tau lossis peb cov lus pom zoo.
3.Cov neeg siv khoom paub meej cov khoom lag luam
4.Cov khoom yuav npaj raws li qhov kev txiav txim thiab xa tuaj raws sijhawm.
33.Yog koj tus nqi sib tw txaus?
Peb tsis tuaj yeem cog lus tias peb tus nqi qis tshaj plaws, tab sis raws li cov chaw tsim khoom uas tau nyob hauv cov khoom siv charger rau 7 xyoo.
Peb muaj kev paub nplua nuj thiab peb muaj peev xwm tswj tau tus nqi.
Peb yuav muab peb cov neeg siv khoom tus nqi-zoo loj cnc ntsug machining chaw, peb cov khoom tsim nyog tus nqi no.
Peb tuaj yeem lav cov khoom zoo, yog li koj tsis tas yuav txhawj xeeb txog kev nyab xeeb ..
35. Yuav tswj tau qhov zoo li cas?
1. Sib piv thiab qhov chaw sib tw 1st tes raw khoom
2. Kev tshuaj xyuas pib los ntawm cov khoom siv raw khoom thiab raws li kev tsim khoom
3.Stick chek ua ntej ua zaub mov xa tuaj thiab ntim khoom
36. Koj ua li cas kom paub tseeb tias tus nqi sib tw raws li qhov zoo tib yam?
1. Tus kheej lub Hoobkas sib dhos kab
2. Thawj tes raw khoom nrhiav
3. Ntau tshaj 10 xyoo kev tsim khoom
Cim npe nrov: me me cnc milling tshuab rau hlau, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, nqe, kev muag khoom, ua nyob rau hauv Suav teb
