Peb txhua tus paub tias cov khoom lag luam nrog undercuts xav tau cov qauv pwm kom tshem tawm lawv. Feem ntau, cov undercuts sab hauv yog tuav nrog ib tug slanted ejector, thaum sab nraud undercuts yog tuav nrog ib tug slider. Lwm qhov xwm txheej cuam tshuam nrog kev quab yuam ejection mechanism. Thaum lub sab hauv undercut tsis tuaj yeem ua haujlwm nrog slanted ejector, peb siv cov qauv dab tsi? Saib daim duab hauv qab no:

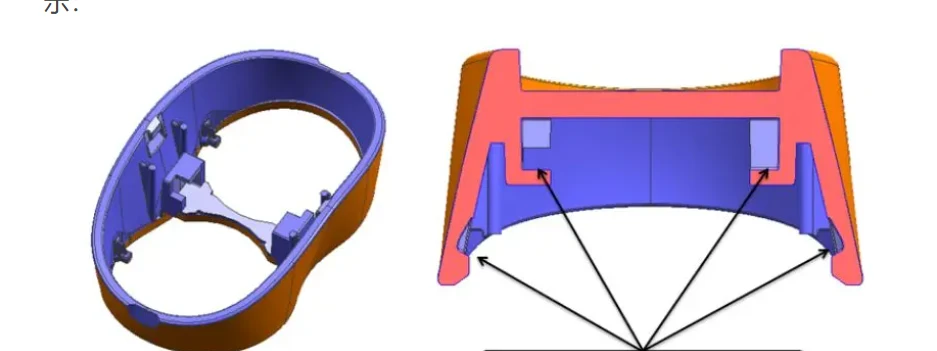

Duab 1. Rau hom khoom no, lub slanted ejector tsis tau; txoj kev xaiv nkaus xwb yog siv lub hauv paus slider core - rub mechanism rau ejection. Internal slider core- rub mechanism muaj ib lub slider sab hauv, chuck, thiab phaj siab.
Duab 2. Cov qauv tsim rau lub slider sab hauv
Duab 3. Lub hauv paus ntsiab lus ntawm cov lus tsa suab ntawm lub tshuab slider sab hauv:
(1) Rau hom kev sib txuas sab hauv no, lub phaj txhawb nqa yuav tsum muab ntxiv rau hauv qab ntawm phaj B. Phaj B thiab lub phaj txhawb nqa yuav tsum qhib, thiab chuck yog xauv rau ntawm lub phaj txhawb nqa.
(2) Ua ntej, daim hlau A thiab B raug qhib. Tom qab qhib rau ib qho kev ncua deb, daim hlau B thiab cov phaj txhawb nqa tau qhib. Qhov qhib qhov nrug yog tswj los ntawm kev txwv screws. Txij li thaum lub shovel yog xauv rau ntawm lub phaj txhawb nqa, nws txav mus rau qhov kev taw qhia ntawm xub xub. Muaj ib tug dovetail zawj nruab nrab ntawm lub puab slider thiab shovel. Vim yog qhov kev txiav txim ntawm dovetail zawj, ob lub sliders sab hauv yog tsav mus rau sab hauv (nyob rau hauv cov kev taw qhia ntawm xub), disengaging los ntawm undercut thiab ua kom tiav cov tub ntxhais rub.
[Duab]
